ZXW Tools Board View / Schematics Dongle

$120.00 AUD inc. GST

4 x fortnightly payments of $30.00 learn more

ZXW (Zillion X Work) Tools is a Windows Software that allows you to follow traces/nets in many popular devices. This is a must have for board level repair, and saves countless hours when compared to manually reading schematics.

The software is constantly updated, and has changed a great deal over time.

Features Include:

  • IC/Part Identification/Searching
  • Trace/Net identification
  • Highlighting net based on pad selection(Red)
  • Ground Pads highlighted by default (Grey)
  • N/C (Not Connected) Pads highlighted by default (Blue)
  • Trace routing map
  • Part Images
  • Includes many external flexes
  • Blackfish – Schematics Library that cross references with ZXW
  • and MUCH more.

Check out the Photos for some screenshots of ZXW in action.

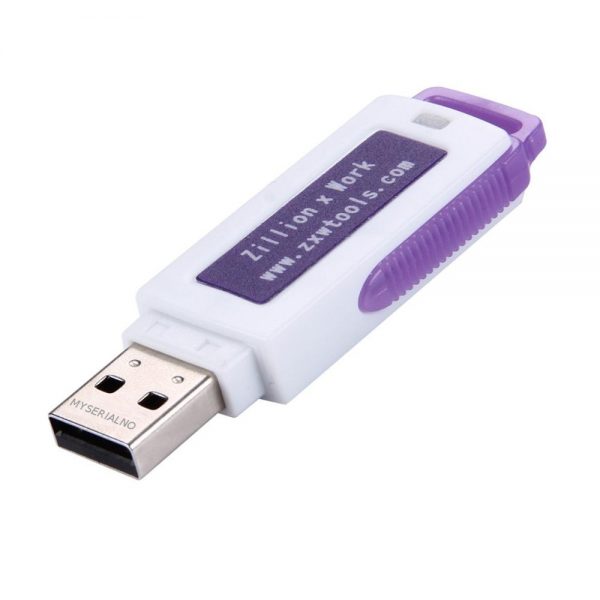

This USB Dongle contains the Activation/Usage Key that is required by the software at all times for use.

The license is valid for 1 year only from the time of activation, after which time it must be renewed.

The dongle is not a storage device and contains no software. Please contact us for the link to the software download after purchase

Please Note: Versions 2.4-2.6 of ZXW is reported to contain malware by many A/V scanners. We use the software ourselves, and believe much of that detection is due to the method in which ZXW communicates/authenticates with its servers. With that said, to our knowledge nobody has performed a detailed analysis of exactly what is lurking within the software.

In order to use the ZXW/Blackfish, you may be required to add an exception to your AntiVirus software.
We have submit the file to Virus Total. Read the Report HERE

Out of stock

SKU: ZXWTUSB Category:
