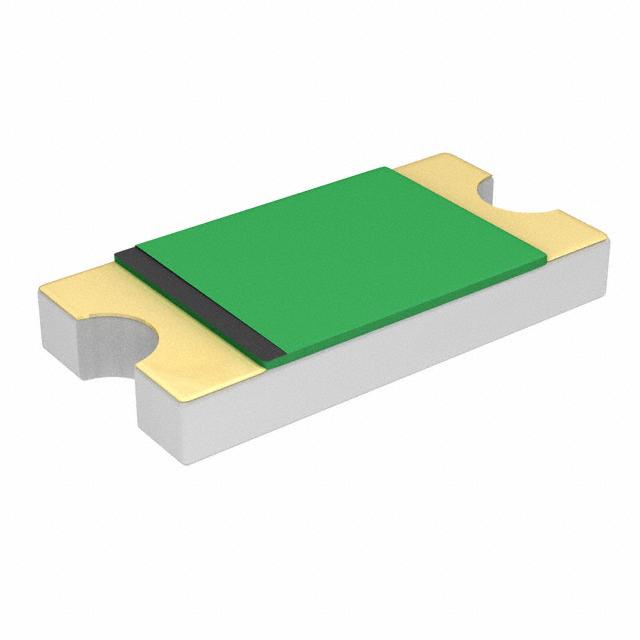

1.1A 8V 1206 PTC Resettable Fuse

A commonly used PTC Fuse.

Voltage – Max : 8V
Current – Max: 100A
Current – Hold (Ih) (Max): 1.1A
Current – Trip (It): 2.2A
Time to Trip: 300ms
Resistance – Initial (Ri) (Min) : 40 mOhms
Resistance – Post Trip (R1) (Max): 180 mOhms
Package: 1206 (3216 Metric)
